1-8x24 IR Second Focal Plane Glass Reticle Rifle Scope
Model Number:
Next Previous

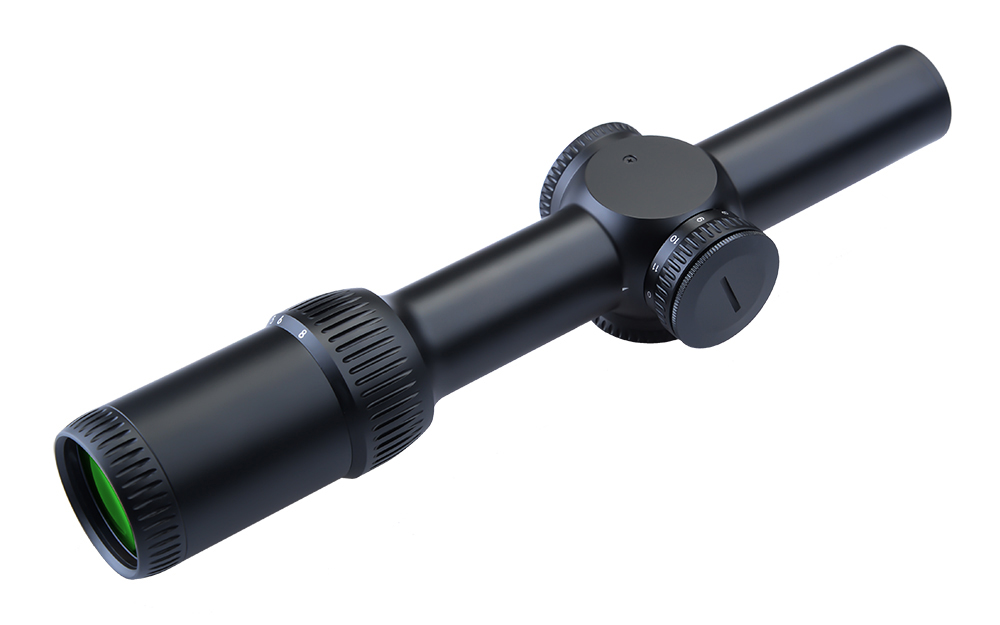

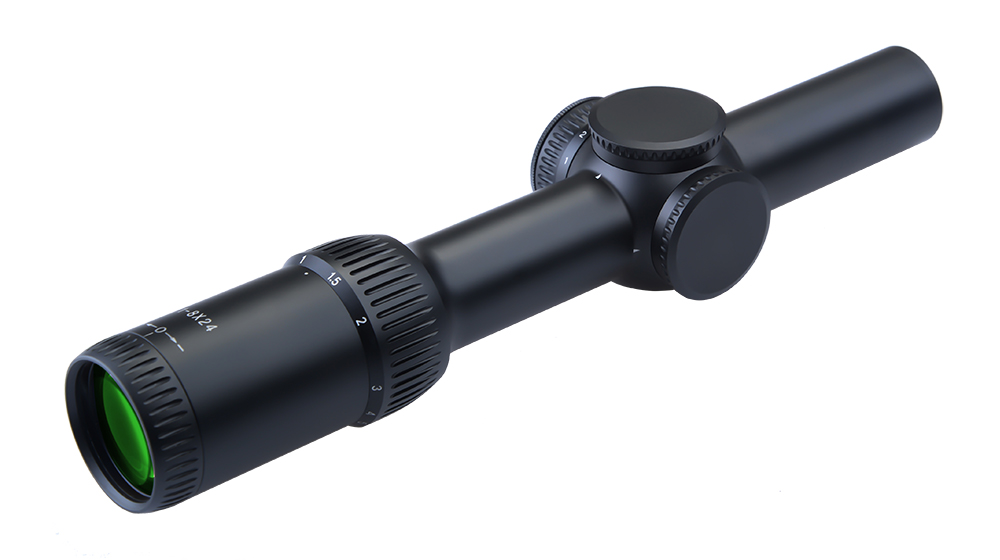

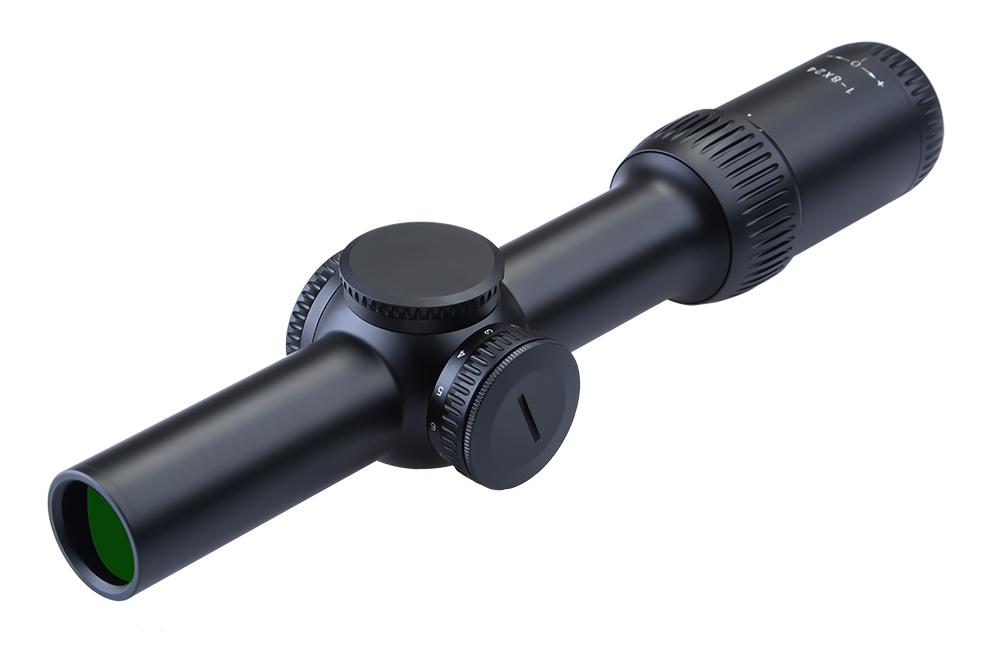

1-8x24 IR Second Focal Plane Glass Reticle Rifle Scope



Objective Lens (mm):24

Weight (g/oz):

Length (mm/inch):265/10.4

One piece Tube:Yes

Eye Relief (mm/inch):98/3.9

Tube Diameter (mm/inch):30/1.18

Field of View (Degrees):21°- 2.63°

Field of View (m@100m)/(ft@100yds):37/111.1@1X 5/14@8X

Max Elevation Adjustment / Max Windage Adjustment :120 MOA

Dioptric Fast Adjust: ±2.5 Dpt

Nitrogen Filled:Yes

Click Value:1/2

1. Fully multi-coated optics

2. 100% waterproof / fogproof / shockproof construction

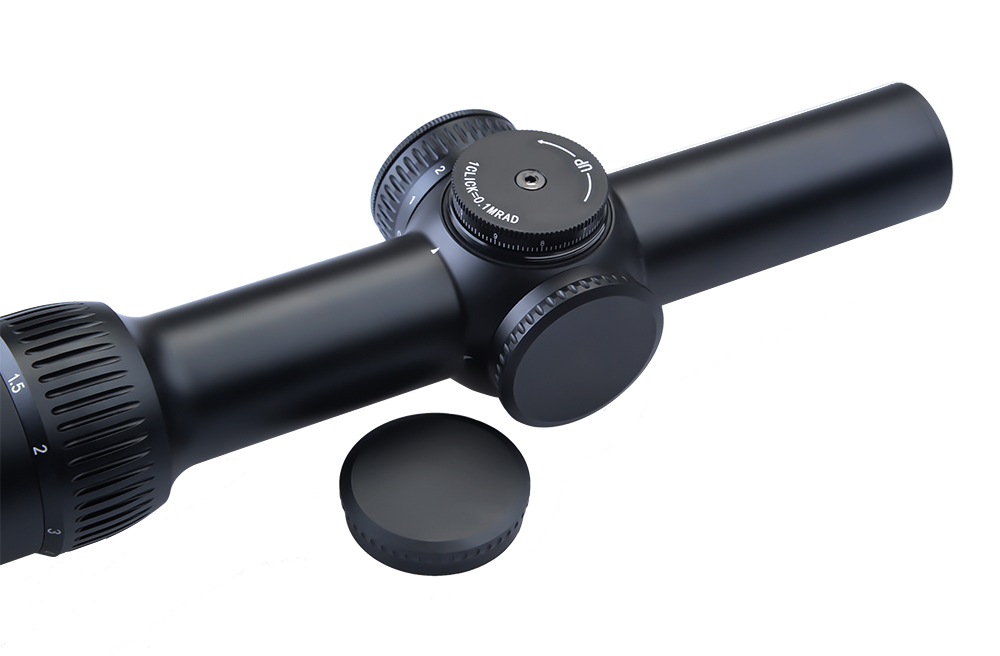

3. Target Turrets with locking/resetting capabilities

4. Dual color Red / Green Illuminated 5 position rheostat

5. Eeched Glass Reticle

6. Easy grip target-style windage and elevation adjustments

7. Black matte finish

8. Wide Field of View

9. Flip-up lens covers to protect the lenses from dirt or dust

10. Fast focus eyebell

11. Smart Spherical Structure
